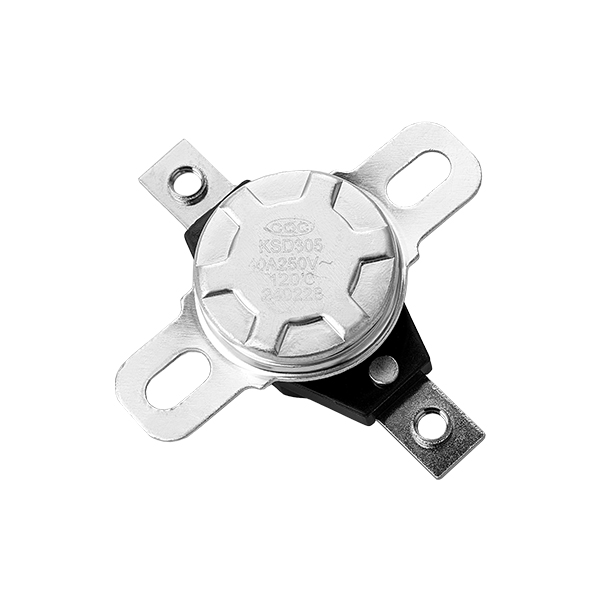

KSD305 high current
KSD305 high current
KSD305 high current
It is specially designed for water heater to sense temperature change with high precision and realize intelligent control. Made of high quality stainless steel, corrosion resistance, high temperature resistance, to ensure long-term use.
Specification
Video
FAQ

Widely used in water heaters and other products.




Operating temperature: 50℃ ~ 150℃
Reset temperature:manual reset
Tolerance range: ±3°C
Rated voltage: 250V ~ 50Hz
Rated current:40A/45A
Insulation resistance: DC500V≥100MΩ
Contact resistance:≤50mΩ
Insulation voltage: Aluminum cover and terminal AC2600V ~ /1 second no breakdown, flicker
Storage temperature range:15℃~+35℃
Obtained certification: CQC、TUV、UL
