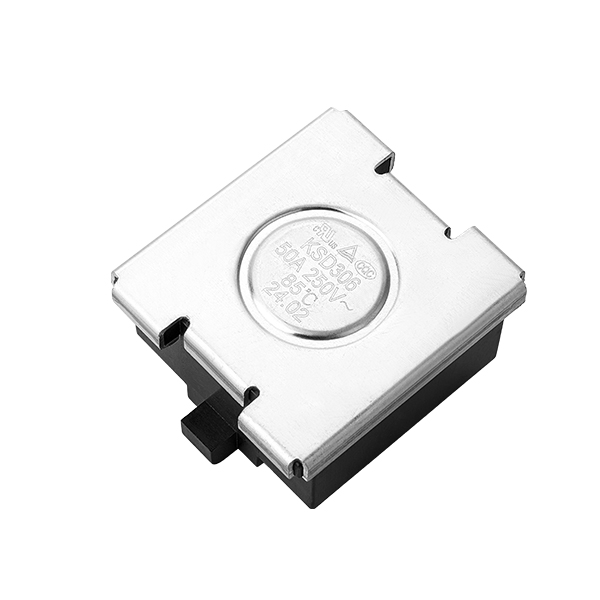

KSD306 high current
Energy efficient and provides complete power disconnection (via two power wires) in case of overheating.
Widely used in air energy water heater and other products.
Operating temperature: | 50℃ ~ 150℃ |
Reset temperature: | manual reset |
Tolerance range: | ±3°C |
Rated voltage: | 250V ~ 50Hz |
Rated current: | 40A/45A/50A/55A/60A/63A |
Insulation resistance: | DC500V≥100MΩ |
Contact resistance: | ≤50mΩ |
Insulation voltage: | Aluminum cover and terminal AC2600V ~ /1 second no breakdown, flicker |
Storage temperature range: | 15℃~+35℃ |
Obtained certification: | CQC、CB、TUV、UL |
