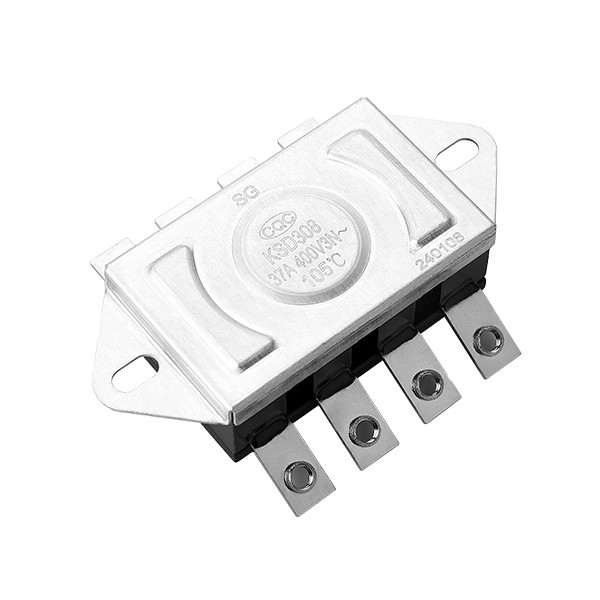

KSD308 high current
High efficiency and energy saving, provide stable and comfortable hot water experience, ensure the safety of use, is an ideal choice for modern home.
Widely used in commercial large capacity water heater and other products.
Operating temperature: | 50℃ ~ 150℃ |
Reset temperature: | manual reset |
Tolerance range: | ±3°C |
Rated voltage: | 400V/415V 3N~ |
Rated current: | 30A/35A/37A/40A/45A/50A/55A/60A/63A |
Insulation resistance: | DC500V≥100MΩ |
Contact resistance: | ≤50mΩ |
Insulation voltage: | Aluminum cover and terminal AC2600V ~ /1 second no breakdown, flicker |
Storage temperature range: | 15℃~+35℃ |
Obtained certification: | CQC、CB、TUV、UL |
